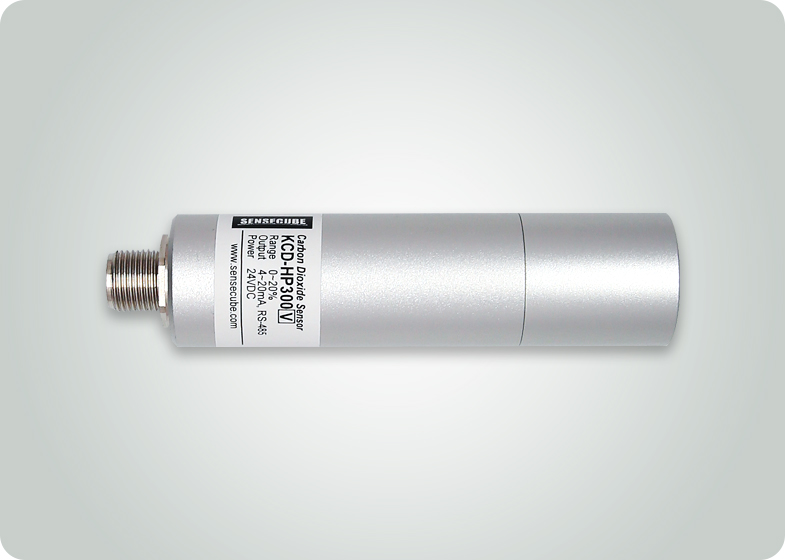

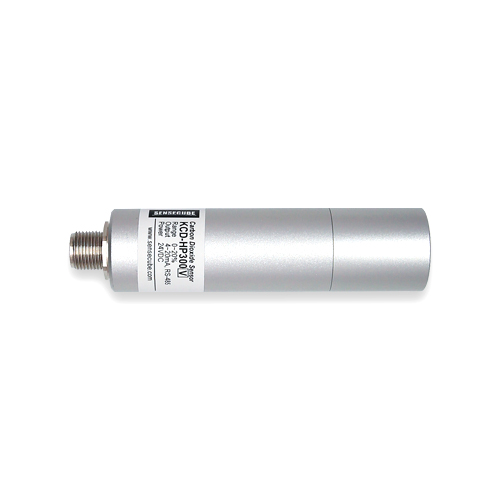

CO2 Sensor Probe

KCD-HP300

국내 최초로 개발 상용화된 Dual Wavelength NDIR 방식의 CO2 가스센서 모듈입니다.
  • Range
    0~2%, ~5%, ~10%, ~20%
  • Output
    4~20mA, 0~10VDC, 0~5VDC(Order separately), RS-485(Modbus RTU)
  • Power
    16~28VDC

목록보기

문의하기

Technical Data

MeasurementSensing MethodDual Wavelength NDIR
Measurement range options1%, 10%, 20%
Accuracy*±(3%F.S+2%Reading)
Response time (T₆₃)< 65 sec
Measurement time interval0.75 sec
GeneralWarm up time< 2 min
Storage temperature-40~70℃
Weight< 250g
Operating ConditionsTemperature5 ~45℃
Humidity0~95%RH (Non-condensing)
ElectricalPower supply (rectifiered)16~28VDC
Power consumption70mA average
OutputsAnalog Outputs0~5VDC, 0 ~10VDC, 4~20mA
Communication OutputRS485
Dimensions1% ProbeΦ43 x 161mm
10% /20% ProbeΦ43x 91mm
Cable1.0m , 6 wires
