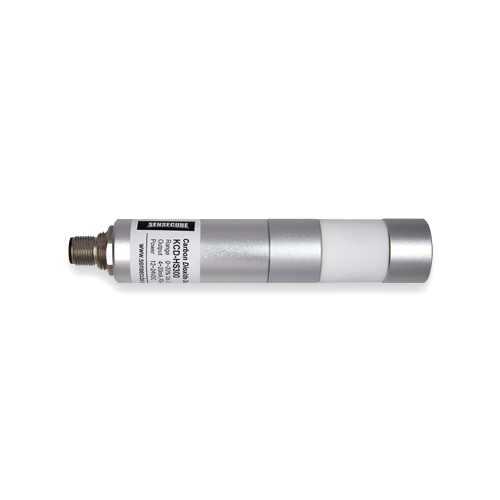

CO2 Sensor Probe

KCD-HS300

국내 최초로 개발 상용화된 Dual Wavelength NDIR 방식의 CO2 가스센서입니다.
  • Range
    0~2%, ~5%, ~10%, ~20%
  • Output
    4~20mA, 0~10VDC, 0~5VDC(Order separately), RS-485(Modbus RTU)
  • Power
    16~28VDC

목록보기

문의하기

Technical Data

MeasurementMeasurement range20%10% (option)
Accuracy±(3% F.S.+2%Reading)@25℃
GeneralResponse time< 65 sec
Initial start-up timeWithin 1 min
Measurement time interval1 sec
Operating ConditionsOperating temperature5~45℃
Humidity~95%RHNon-condensing
Storage temperature-40 ~ 70℃
Temperature dependence0.2% FS / ℃
Measurement flow speed0.2~1 m/sec
ElectricalPower supply12~24VDC
Power consumption70mA average
OutputsCommunicationRS485Modbus RTU
Analog Output4~20 mA , 0~20, 0~20,mA
(0~5VDC, 10VDC option )
DimensionsProbeΦ25 x 90 mm
WeightAbout 67g
Cable3m, 5P
