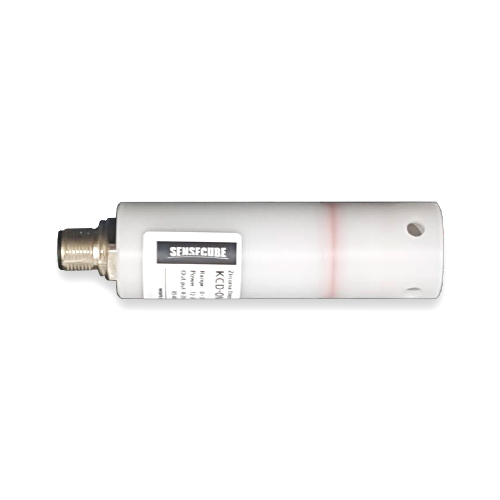

O2 Sensor Probe

KCD-ON420

  • Range
    0~25% (Zirconia type)
  • Output
    4~20mA or 0~5VDC, RS-485(Modbus RTU)
  • Power
    DC12~24V

목록보기

문의하기

Technical Data

MeasurementMeasurement range0.1⁽¹⁾ ~ 25.0 %O₂
Sensing methodSolid electrolytes (Zirconia)
Accuracy After Calibration⁽²⁾±0.5 % O₂
Repeatability< 30sec (90% Value)
General ConditionsOperating Temperatur-10 ~ 50 ℃
Operating Humidity0~85%RH, (non condensing)
Sensor lifeMore than 3 years,
(with power connection)
ElectricalPower supply12~24 VDC⁽³⁾
Power consumptionAbout 3W
Electrical Spec DimensionsAnalog output (Option )4~20mA, (or 0~5 VDC, 0~10VDC)
CommunicationRS-485 (Modbus RTU)
DimensionsSensor Φ25mm x 115mm
Cable 5C (22AWG) x 1.5m
WeightSensor 50g, Cable 70g
